Product Description
Basket filters and strainers are essential components in industrial fluid handling systems designed to remove unwanted particles from liquids or gases to protect downstream equipment and processes Heres an overview of basket filters and strainers

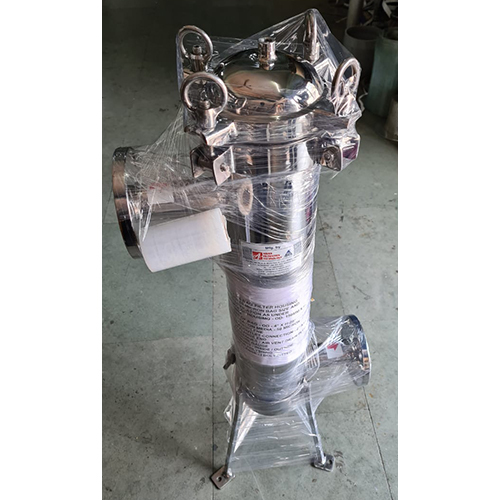

Basket Filters
Construction and Design
Basket Shape Basket filters feature a cylindrical or conicalshaped basket made from materials such as stainless steel carbon steel or other alloys
Filter Element They typically use a perforated metal basket or meshlined basket as the filter element which holds the filter media eg wire mesh perforated sheets
Removable Basket The basket is often designed to be removable for easy cleaning and maintenance without requiring disassembly of the entire housing
Operation
Filtration Process Fluid flows through the inlet into the basket filter where solid particles are trapped by the filter media Cleaned fluid exits through the outlet while trapped particles remain inside the basket
Retention Capacity Basket filters have a large surface area due to their cylindrical shape allowing for efficient particle retention and longer intervals between cleaning or replacement
Applications
Process Industries Used in chemical processing petrochemicals oil and gas food and beverage pharmaceuticals and pulp and paper industries
Water Treatment Commonly employed in municipal water treatment plants and industrial water filtration systems to remove debris and contaminants from water
Benefits
High Efficiency Effective in removing a wide range of particles including large debris and fine particulates depending on the filter media used
Durability Constructed from robust materials basket filters are designed to withstand high pressures and temperatures making them suitable for demanding industrial environments
Ease of Maintenance Removable baskets facilitate easy cleaning or replacement of filter elements reducing downtime and maintenance costs
Strainers
Construction and Design
Basket or YStrainer Strainers come in basket types or Ytypes with basket strainers resembling basket filters but often used for coarser filtration while Ystrainers have a conical shape and are typically used for smaller flows and less frequent maintenance
Mesh or Perforation Similar to basket filters strainers use mesh or perforated screens to trap particles but they usually have a simpler design and are often smaller in size
Operation
Filtration Process Fluid flows through the strainer body where debris and particles are captured by the straining element mesh or perforated screen
Maintenance Strainers require periodic cleaning or replacement of the straining element to maintain flow efficiency and prevent clogging
Applications
HVAC Systems Used to protect pumps valves and other equipment from debris in heating ventilation and air conditioning systems
Process Piping Installed in pipelines to prevent damage to sensitive components in industrial processes
Benefits
CostEffective Strainers are generally more economical than complex filtration systems and are suitable for applications requiring less stringent filtration requirements
Compact Design Ystrainers in particular have a compact design suitable for installation in tight spaces or where space is limited
Considerations
Particle Size and Efficiency Select the appropriate mesh size or perforation based on the particle size to be removed and the required filtration efficiency
Material Compatibility Ensure the strainer or basket filter material is compatible with the fluid being filtered to prevent corrosion or degradation
Installation and Maintenance Proper installation and regular maintenance are crucial to ensure optimal performance and longevity of basket filters and strainers
In summary basket filters and strainers play vital roles in protecting equipment and maintaining process efficiency by removing unwanted particles from liquids and gases in industrial and commercial applications Their robust construction efficiency and ease of maintenance make them essential components in fluid handling systems across various industries
